FACTS
➥ efficiency without pump power
➥ power by compressed air
➥ depending on the water level
➥ low water consumption

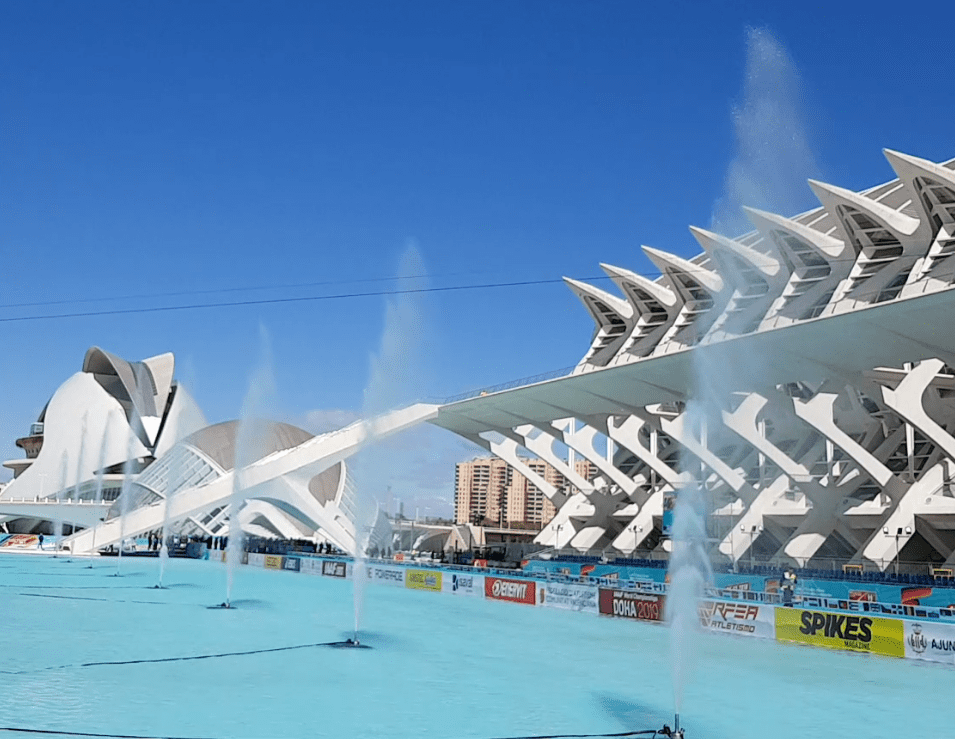

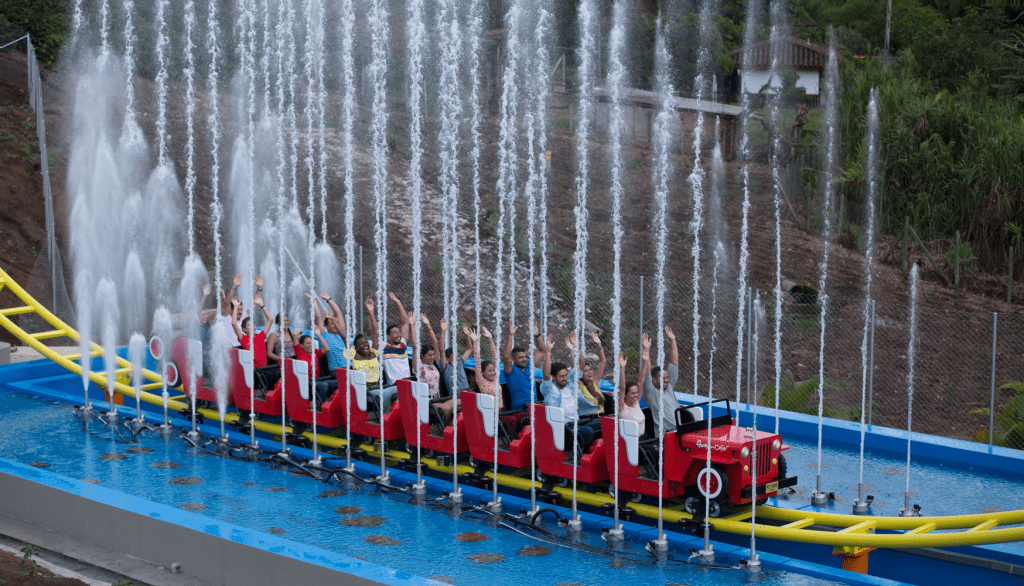

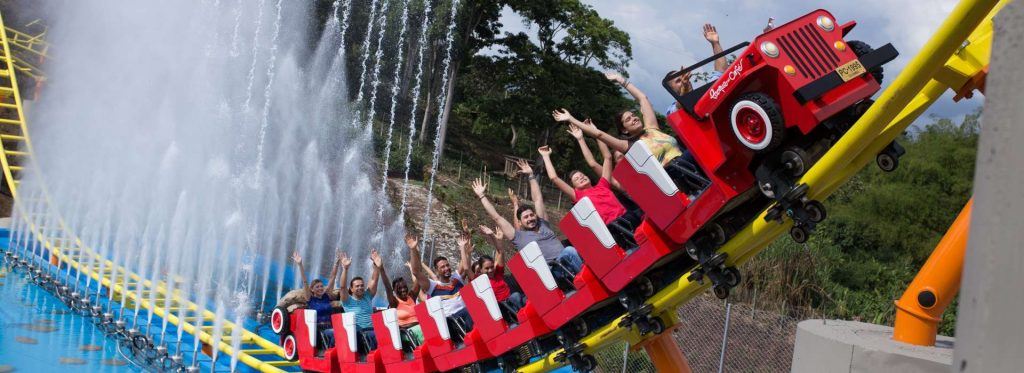

Compressed air instead of pump power forms the basis for these powerful and efficient fountains. The AIM AquaShooter “shoots” a clearly visible jet of water like a rocket up to 10 meters into the sky. After the launch, more compressed air escapes with an audible hiss and a bang. This effect attracts additional attention.
This nozzle is dependent on the water level. The montage in relation to the water level changes the picture or the character of the effect.
AIM AquaShooter | |
Material | Stainless Steel (AISI 304) |
Thread | 1/2″ Inner |
Voltage Magnetic Valve (V/DC) | 24 |
max. Pressure (Bar) | 8 |
max. Head (Meter) | 8 - 10 |
Minium Length Pressure Line (Meter) | 10 |
Minimum Diameter Pressure Line (Inch) | 1 |
Weight (kg) | 11 |
Item Number | AIM-aquashooter |
Data sheet on request
